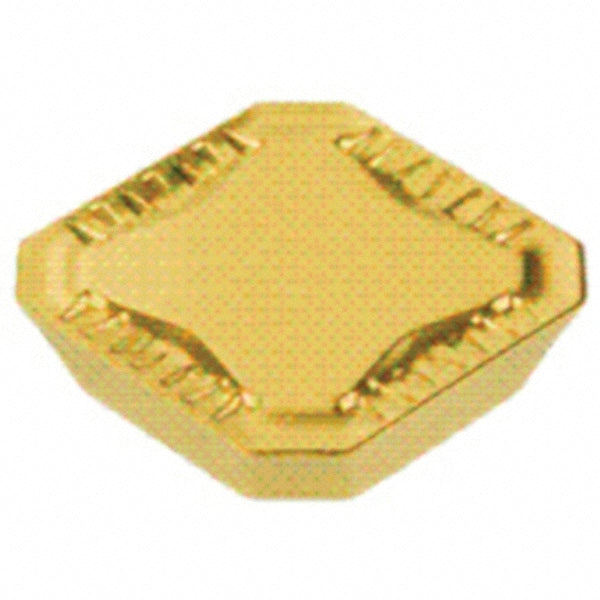

SEKR 1203AFN-76 Solid Carbide Insert, Grade IC520M, TiCN - Iscar 5601272

Iscar

SEKR 1203AFN-76 Solid Carbide Insert, Grade IC520M, TiCN - Iscar 5601272

MFR# 5601272ISO/ANSI# SEKR 1203AFN-76Cat# SEKR 42AFN-76 IC520MSeries ISCARMILL

$12.94List $16.60 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeIC520M
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5601272 is a SEKR 1203AFN-76 solid carbide indexable insert, grade IC520M, TiCN coated. Suited for steel, stainless steel, cast iron.

Specifications

Ansi codeSEKR 42AFN-76 IC520M
Chip breaker76
Coating finishTiCN
Coating processCVD
Corner radius0.0000
Cutter series compatibilityF45E
Cutting edge effective length0.5000
Cutting edge styleHoned
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert shapeSquare
Insert size4
Insert size code42
Insert styleSEKR
Iso codeSEKR 1203AFN-76
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSEKR 42AFN-76 IC520M
Manufacturer gradeIC520M
Material applicationSteel; Stainless Steel; Cast Iron
Maximum depth of cut0.2560
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Relief angle20
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in1/2
