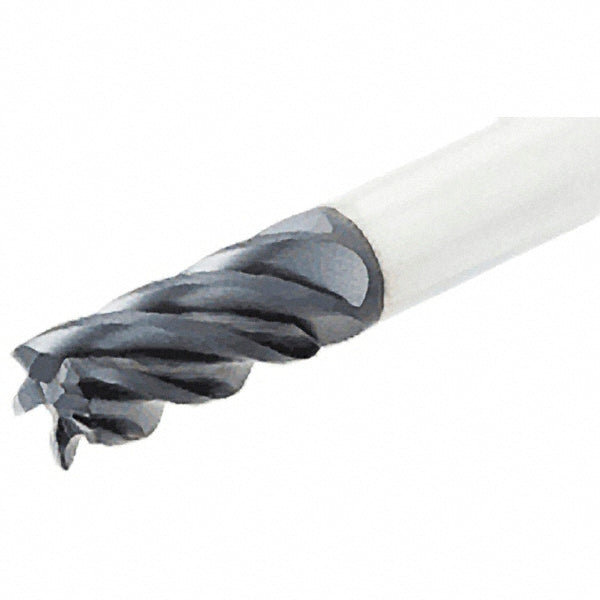

5/8" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Iscar 5623158

Iscar

5/8" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Iscar 5623158

MFR# 5623158Series ECI-H5R-CF

$333.80List $427.50 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5623158 is a 5/8 5-flute Solid Carbide (Submicron) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 4 overall length. Series ECI-H5R-CF.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0310
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withToolholder
Helix styleVariable
Length of cut0.6299
Length typeMedium
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter in5/8
Number of flutes5
Overall length in4
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Reach length1.5600
Shank diameter in5/8
Shank typeWeldon Flat
Single or double endSingle
Variable helixYes
Variable indexYes
