Iscar

0.4724" 7-Flute Solid Carbide Corner Radius End Mill, TiAlN - Iscar 5623377

MFR# 5623377Series Chatter Free; Solid Mill

$153.91List $197.10 Save 21%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes7

MaterialSolid Carbide

CoatingTiAlN

Description

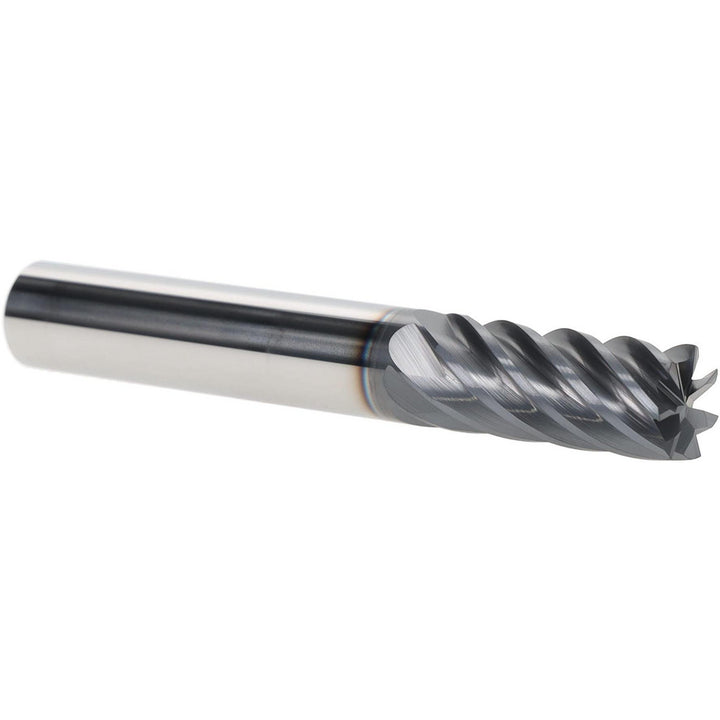

The Iscar 5623377 is a 0.4724 7-flute Solid Carbide (Ultra Fine Grain) corner radius end mill with a TiAlN finish for longer tool life. 0.9449 length of cut. Series Chatter Free; Solid Mill.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishTiAlN

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeVariable

Helix angle37

Length of cut0.9449

Length typeRegular

Material gradeUltra Fine Grain

Maximum helix angle37

Mill diameter0.4724

Mill diameter tolerancee8

Number of flutes7

Shank diameter (mm)12.00

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle
