Iscar

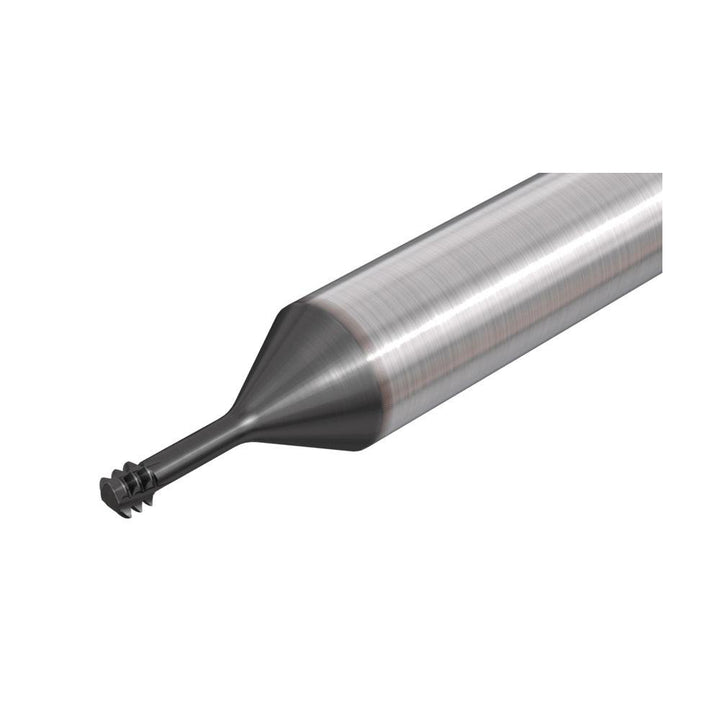

Helical Flute Thread Mills - Iscar 5667140
MFR# 5667140
$228.99List $293.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-16
CoatingTiAlN
Description
The Iscar 5667140 helical flute thread mills.
Specifications
Coating finishTiAlN
Coolant throughNo
Cutting diameter (mm)6.70
Length of cut (mm)30.20
MaterialSolid Carbide
Material gradeFine Grain
Minimum nominal diameter in0.3750
Number of flutes3
Overall length (mm)64.00
Shank diameter (mm)8.00
Teeth per inch16
Thread size in3/8-16
Thread standardUN
Thread typeInternal
