Iscar

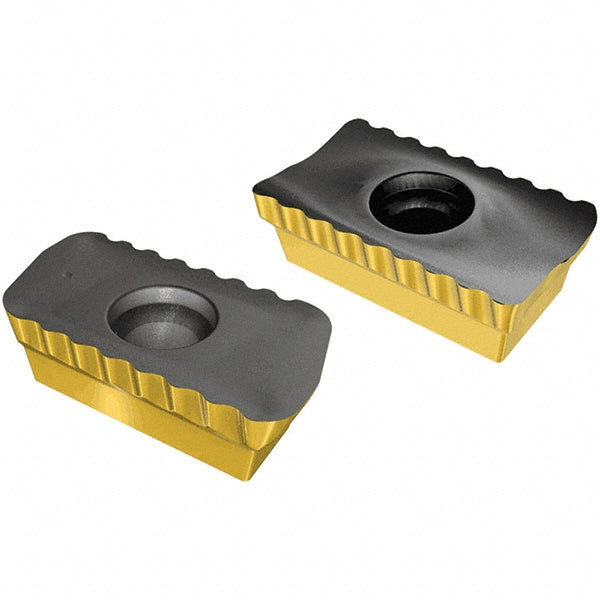

P290 ACKT 1204PDR-FW Solid Carbide Insert, Grade IC808, TiAlN - Iscar 5668290
MFR# 5668290ISO/ANSI# P290 ACKT 1204PDR-FWCat# P290 ACKT 1204PDR-FW IC808Series MILLSHRED
$26.94List $34.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIC808
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5668290 is a P290 ACKT 1204PDR-FW solid carbide indexable insert, grade IC808, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeP290 ACKT 1204PDR-FW IC808
Chip breakerFW
Coating finishTiAlN
Coating processPVD
Corner radius0.0354
Cutter series compatibilityP290
Cutting edge effective length0.4840
Cutting edge styleSegmented
Included angle degree85
Inscribed circle0.3230
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size12
Insert size code1204
Insert styleACKT
Iso codeP290 ACKT 1204PDR-FW
Length0.5040
Length range0.5000 to 0.6000
Manufacturers catalog numberP290 ACKT 1204PDR-FW IC808
Manufacturer gradeIC808
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.4840
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Relief angle7.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1730
Thickness range0.1500 to 0.1750
Width0.3230
