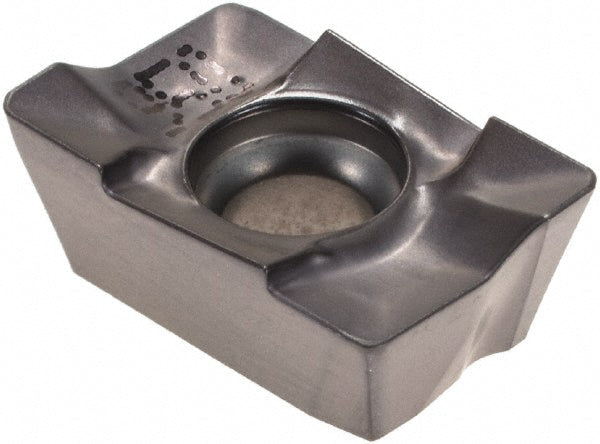

ADMT 1505PDR-HS Solid Carbide Insert, Grade IC950, TiAlN - Iscar 5690088

Iscar

ADMT 1505PDR-HS Solid Carbide Insert, Grade IC950, TiAlN - Iscar 5690088

MFR# 5690088ISO/ANSI# ADMT 1505PDR-HSCat# ADMT 1505PDR-HS IC950Series HELISHRED

$25.92List $33.20 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC950
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5690088 is a ADMT 1505PDR-HS solid carbide indexable insert, grade IC950, TiAlN coated. Suited for steel, cast iron.

Specifications

Ansi codeADMT 1505PDR-HS IC950
Chip breakerHS
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityADK
Cutting edge effective length0.5510
Cutting edge styleHoned
Included angle degree85
Inscribed circle0.3780
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code1505
Insert styleADMT
Iso codeADMT 1505PDR-HS
Length0.6240
Length range0.6000 to 0.6500
Manufacturers catalog numberADMT 1505PDR-HS IC950
Manufacturer gradeIC950
Material applicationSteel; Cast Iron
Maximum depth of cut0.4720
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2330
Thickness range0.2200 to 0.2350
Width0.3780
