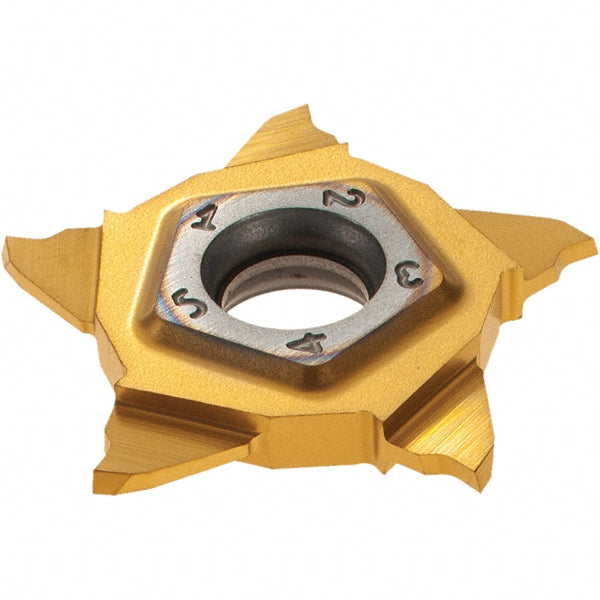

ISO 13399 Solid Carbide Insert, Grade IC1008, TiAlN - Iscar 6003383
MFR# 6003383ISO/ANSI# ISO 13399Cat# PENTA 24R100P15DSeries PentaCut
$59.96List $76.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC1008
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6003383 is a ISO 13399 solid carbide indexable insert, grade IC1008, TiAlN coated. Suited for universal.
Specifications
ChipbreakerP
Coating finishTiAlN
Coating processPVD
Corner radius0.0020
Cutting tool applicationParting
Cutting width0.0394
Full radiusNo
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert size code24R100
Insert stylePENTA
Iso codeISO 13399
Lead angle15
Lead angle directionRight Hand
Manufacturers catalog numberPENTA 24R100P15D
Manufacturer gradeIC1008
Material gradeC1; C2; C3; C5; C6
Multi use toolNo
Overall width0.1575
Primary workpiece materialUniversal
Relief angle12.00
StandardsISO 13399
