Iscar

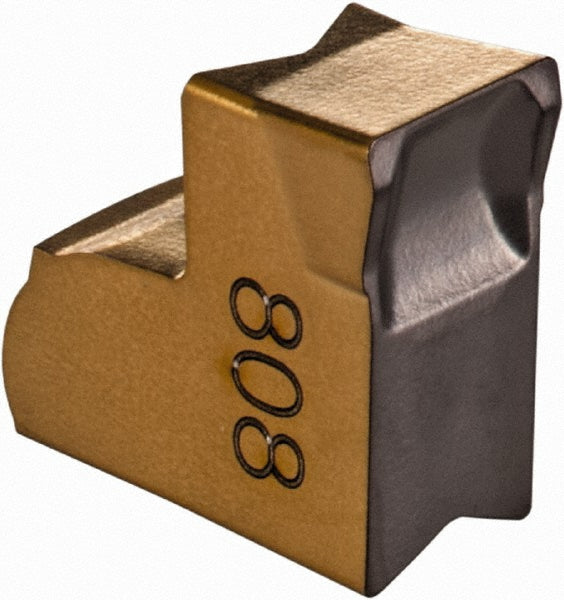

ISO 13399 Solid Carbide Insert, Grade IC808, TiN - Iscar 6003579
MFR# 6003579ISO/ANSI# ISO 13399Cat# TAG N4CSeries Tang-Grip
$20.43List $26.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingTiN
Description
The Iscar 6003579 is a ISO 13399 solid carbide indexable insert, grade IC808, TiN coated. Suited for universal.
Specifications
ChipbreakerC
Coating finishTiN
Coating processPVD
Corner radius0.0094
Cutting tool applicationSlitting
Cutting width0.1570
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size code4
Insert styleTAGN
Iso codeISO 13399
Lead angle directionNeutral
Manufacturers catalog numberTAG N4C
Manufacturer gradeIC808
Material gradeSubmicron
Multi use toolYes
Primary workpiece materialUniversal
Relief angle7.00
Single or double endSingle
StandardsISO 13399
