Iscar

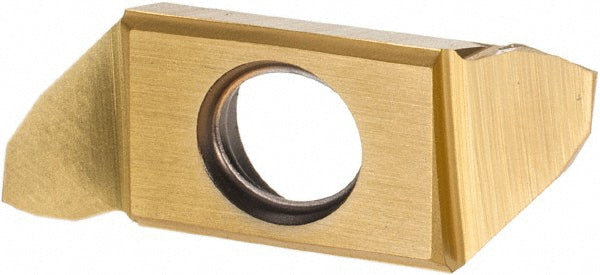

ISO 13399 Solid Carbide Insert, Grade IC1008, TiAlN - Iscar 6404229
MFR# 6404229ISO/ANSI# ISO 13399Series Swisscut
$48.88List $62.60
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC1008
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6404229 is a ISO 13399 solid carbide indexable insert, grade IC1008, TiAlN coated. Suited for universal.
Specifications
Chip breakerB
Coating finishTiAlN
Coating processPVD
Corner radius0.0039
Cutting width0.0200
Full radiusNo
Insert handRight Hand
Insert materialSolid Carbide
Insert size22BR10
Insert size code22BR1005K7
Insert styleSCIR
Iso codeISO 13399
Lead angle60
Manufacturer gradeIC1008
Maximum depth of cut0.1180
Maximum depth of cut range0.1000 to 0.1500
Multi use toolYes
Overall length0.8660
Overall width0.1180
Primary workpiece materialUniversal
RakePositive
Rake angle12.00
Single or double endDouble
StandardsISO 13399
