Iscar

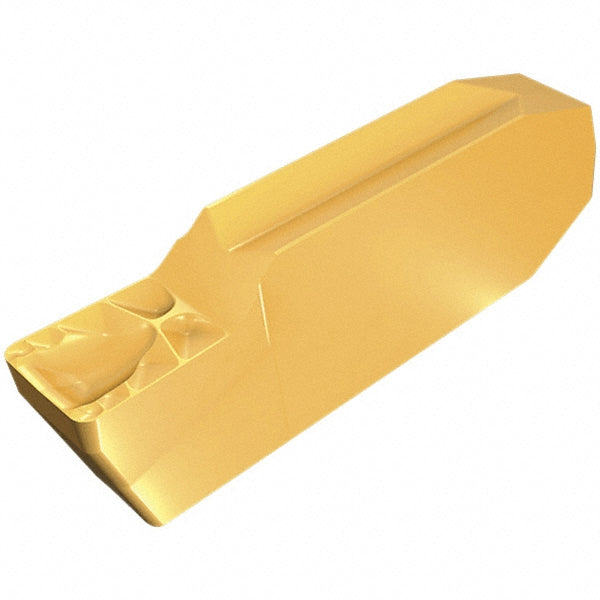

GIMIY 304 Solid Carbide Insert, Grade IC808, AlTiN - Iscar 6404460
MFR# 6404460ISO/ANSI# GIMIY 304Cat# GIMIY 304Series Cut Grip
$17.33List $22.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC808
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 6404460 is a GIMIY 304 solid carbide indexable insert, grade IC808, AlTiN coated. Suited for universal.
Specifications
Chip breakerY
Coating finishAlTiN
Coating processPVD
Corner radius0.0157
Cutting height0.1969
Cutting width0.1181
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size304
Insert size code304
Insert styleGIMIY
Iso codeGIMIY 304
Manufacturers catalog numberGIMIY 304
Manufacturer gradeIC808
Material gradeSubmicron
Maximum depth of cut0.0591
Maximum depth of cut range0.0000 to 0.0750
Multi use toolYes
Overall length0.6181
Primary workpiece materialUniversal
Single or double endSingle
StandardsISO 13399
