Iscar

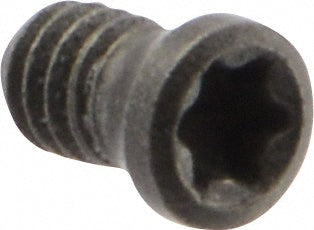

Fasteners for Indexables - Iscar 7002347
MFR# 7002347Series DR-TWIST
$2.14List $2.20
Save 2%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread sizeM2 x 0.4
Description
The Iscar 7002347 fasteners for indexables. Series DR-TWIST.
Specifications
Complete insert compatibilityAOMT 040204-90DT; SOMT 060204-DT; SOMT 09T306-DT; SOMT 09T306-GF; SOMT 100408-DT; SOMT 110408-DT; SOMT 120408-DT; SOMT 120408-GF; SOMT 160512-GF; SOMX 050204-DT; SOMX 050204-GF; SOMX 060304-DT; SOMX 060304-GF; SOMX 070305-DT; SOMX 070305-GF; SOMX 160512-D
Drive typeTorx
Hardware compatibilityInsert
Head typeCountersunk
Indexable tool typeDrilling
Key driver compatibilityT-6/5
Overall length0.1575
Screw typeCap Screws
Thread size inM2 x 0.4
Toolholder style compatibilityDR-2D-N
Torx sizeT6
