Jergens

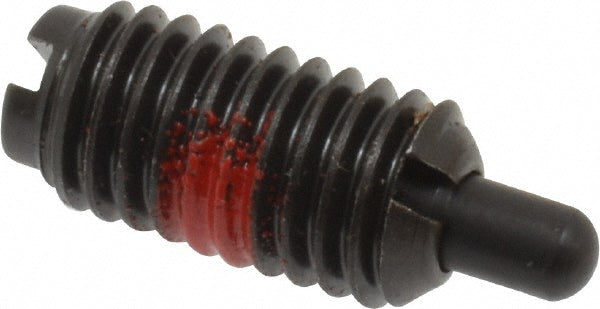

M8 x 1.25 Spring Plunger - Jergens 26773
MFR# 26773
$7.34List $9.22
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Jergens 26773 is a M8 x 1.25 steel spring plunger.
Specifications
Body length16.00
Body materialSteel
Final end force kg4.54
FinishBlack
Initial end force kg0.23
Locking elementYes
Maximum plunger diameter (mm)3.43
Nose materialDelrin; Steel
Plunger length (mm)16.00
Plunger length typeShort
Plunger projection (mm)5.00
Thread length (mm)16.00
Thread sizeM8 x 1.25
