Jergens
M10 x 1.50 Spring Plunger - Jergens 26774
MFR# 26774
$7.34List $9.22
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

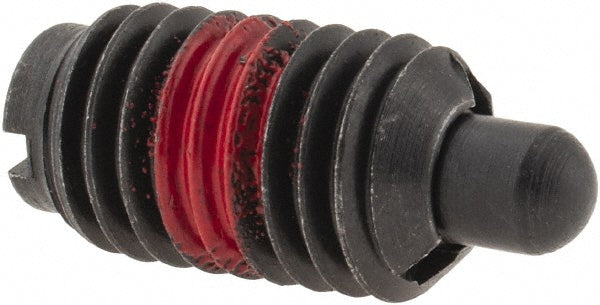

The Jergens 26774 is a M10 x 1.50 steel spring plunger.
Specifications
Body length17.50
Body materialSteel
Final end force kg5.44
FinishBlack
Initial end force kg0.46
Locking elementYes
Maximum plunger diameter (mm)4.72
Nose materialDelrin; Steel
Plunger length (mm)17.50
Plunger length typeShort
Plunger projection (mm)5.50
Thread length (mm)17.50
Thread sizeM10 x 1.50
