Jergens

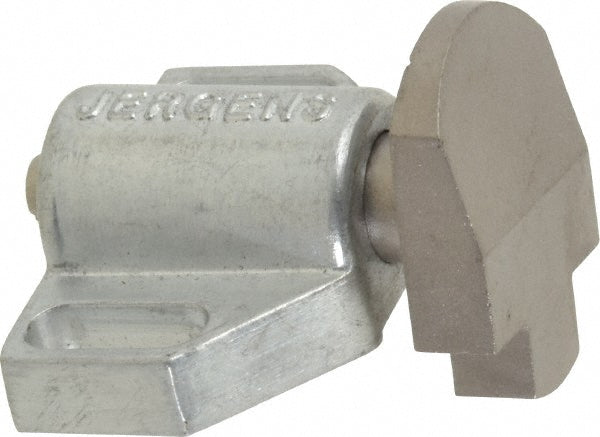

Spring Plunger - Jergens 36105
MFR# 36105
$35.13List $44.10
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Jergens 36105 is a zinc aluminum alloy spring plunger.
Specifications
Base thickness in1/4; 0.25in
Body length1in; 1.0000
Body materialZinc Aluminum Alloy
Body width1.5000
Distance between button top edge0.5625
Distance between button to bottom edge0.3125in
Distance between button to top edge0.5625in
Distance between mount hole centers in1-1/8; 1.13in
Distance betw button bottom edge0.3125
Initial end force14.4lb
Middle end force kg6.35kg; 6.35
Mounting slot length0.54in
Mounting slot width0.2031in; 0.2031
Stop head height in1-1/8
Stop head thickness0.2500
Stop head width in0.875in
Stop materialLow Carbon Steel
Stroke length in3/16
Tang length in17/64
Tang profileTang
Tang width0.3750
