Kennametal

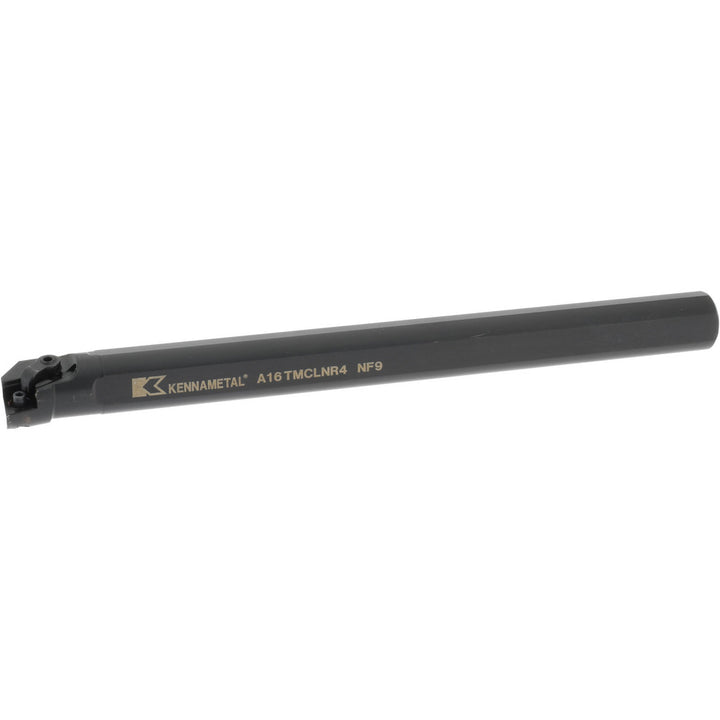

Indexable Boring - Kennametal 1016456
MFR# 1016456Series Kenloc
$365.78List $427.05
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1016456 indexable boring. Series Kenloc.
Specifications
Back of bar to cutting edge (mm)16.26
Center to cutting edge0.6400
Coolant hole thread size in1/4-18 NPT
Coolant throughYes
Hand of holderRight Hand
Insert compatibilityCN..
Insert holding methodScrew; Clamp
Insert inscribed circle in1/2
Insert thickness in3/16
Lead angle-5
Minimum bore diameter1.2000
Multi use toolNo
Overall length in12
RakeNegative
Rake angle5.00
Shank diameter in1
Toolholder styleA-MCLN
Tool materialSteel
