Kennametal

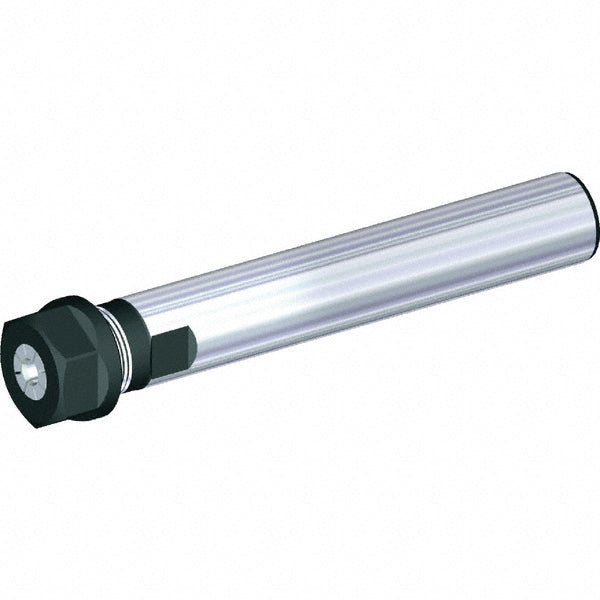

ER20 Collet Chuck - Kennametal 1021496
MFR# 1021496
$225.06List $282.51
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1021496 is a ER20 Collet Chuck.
Specifications
Actuator typeWrench
Balanced to rpm8000
Collet nut diameter1.3390
Collet seriesER20
Collet systemER
Coolant typeThrough-Spindle
Hex diameter1.3400
Maximum collet capacity in1/2
Minimum collet capacity0.0200
Overall length in7
Projection in1-3/4
Shank diameter in1
Shank length5.2500
Shank typeStraight
Through coolantYes
Tir0.0001
