Kennametal

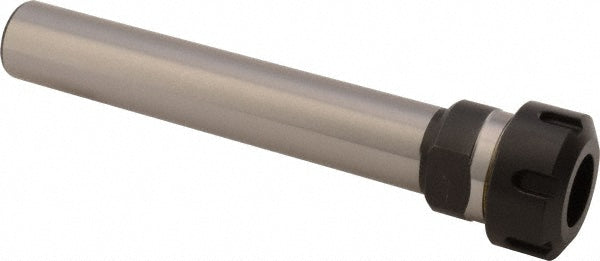

ER25 Collet Chuck - Kennametal 1021498
MFR# 1021498
$225.06List $282.51
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1021498 is a ER25 Collet Chuck.
Specifications
Actuator typeWrench
Balanced to rpm8000
Collet nut diameter1.6540
Collet seriesER25
Collet systemER
Coolant typeThrough-Spindle
Hex diameter1.6500
Maximum collet capacity0.6300
Minimum collet capacity0.0400
Overall length in7-1/2
Projection1.8100in
Shank diameter in1
Shank length5.6900
Shank typeStraight
Through coolantYes
Tir0.0001
