Kennametal
Indexable Milling Cutters - Kennametal 1024965
MFR# 1024965Series KSSM
$1,547.61List $1,889.06
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes10
Description

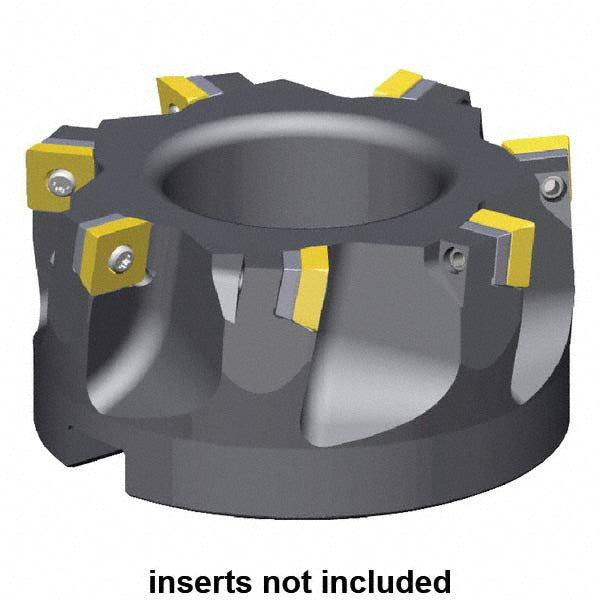

The Kennametal 1024965 indexable milling cutters. Series KSSM.
Specifications
Arbor hole diameter in1-1/2
Compatible insert size codeSD.T 43..
Complete insert compatibilitySDCW 433PDSR8GN; SDCW 43PDSR8GN; SDPT 43PDER8GB2; SDPT 43PDSR8GB2
Coolant throughNo
Cutter styleKSSISR
Cutting directionRight Hand
Hub diameter3.6850
Insert holding methodScrew
Keyway width0.6400
Lead angle0/90
Maximum body diameter4.9290
Maximum cutting diameter in5
Maximum depth of cut0.3610
Number of cutter inserts10
Number of flutes10
Overall height2.3800
Pitch typeFine
