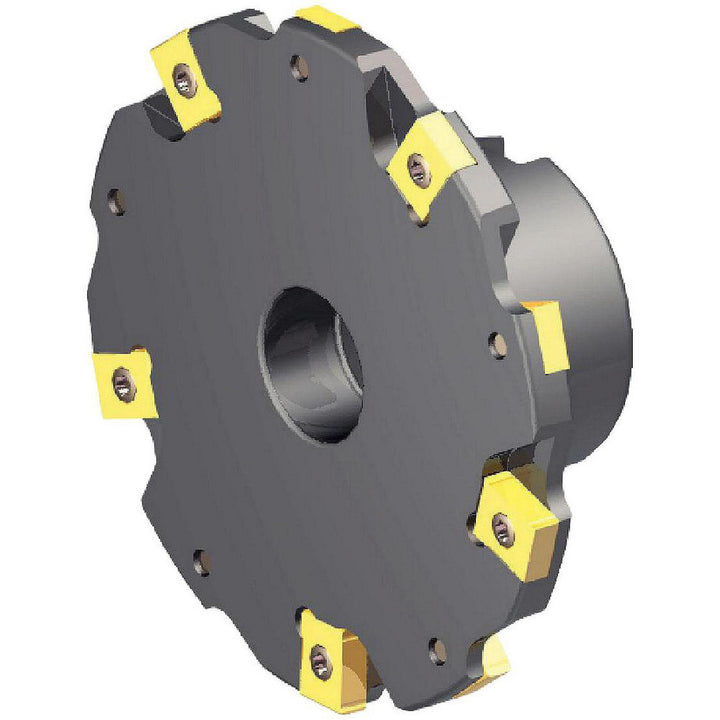

Indexable Milling Cutters - Kennametal 1067765

Kennametal

Indexable Milling Cutters - Kennametal 1067765

MFR# 1067765Cat# KS254BLNE1240Series LN

$914.94List $1,116.80 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Cutter dia.2-1/2

Description

The Kennametal 1067765 indexable milling cutters. Suited for steel, stainless steel, cast iron, superalloys & titanium. Series LN.

Specifications

Compatible insert styleLNE 1240
Complete insert compatibilityLNEU 1240R03; LNEU 1240R08; LNEU 1245R08; LNEU 1245R16; LNEU 1245R32; LNEU 1255R04; LNEU 1255R08; LNEU 1255R32; LNEU 1260R; LNEQ 1235R03; LNEQ 1240; LNEQ 1240R03; LNEQ 1245R04; LNEQ 1250R04; LNEQ 1255; LNEQ 1255R04; LNEQ 1260R04; LNEU 1235R03; LNEU 1240R1
Cutter body width1.8750
Cutter diameter in2-1/2
Cutting width in1/4
Hole diameter in3/4
Hub diameter1.5800
Insert holding methodScrew
Keyway width0.3100
Manufacturers catalog numberKS254BLNE1240
Maximum depth of cut0.5600
Maximum rpm10400
Minimum cutting width in1/4
Number of cutter inserts6
Number of teeth6
Overall height1.8750
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RadiusNo
RakeNeutral; Positive
Shank diameter in3/4
Toolholder style90 LN
Tooth typeStaggered
