Kennametal

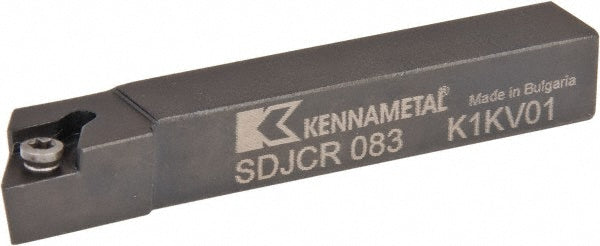

Indexable Turning & Profiling - Kennametal 1094525
MFR# 1094525Cat# SDJCR; L083Series Screw-On
$143.58List $175.26
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1094525 indexable turning & profiling. Series Screw-On.
Specifications
Back of bar to cutting edge in5/8
Complete insert compatibilityDC.. 3252
Coolant throughNo
Hand of holderRight Hand
Head length0.8800
Insert compatibilityDC..32.5.
Insert holding methodScrew
Insert inscribed circle in3/8
Manufacturers catalog numberSDJCR; L083
Multi use toolNo
Overall length in3-1/2
RakeNeutral
Rake angle0
Shank height in1/2
Shank width in1/2
Toolholder materialSteel
Toolholder styleSDJC
