Kennametal

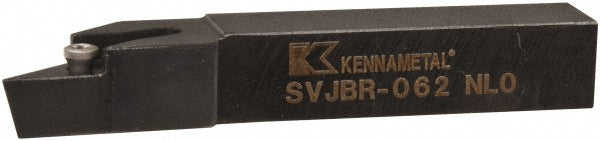

Indexable Turning & Profiling - Kennametal 1094533
MFR# 1094533Cat# SVJBR; L062Series Screw-On
$125.38List $153.05
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1094533 indexable turning & profiling. Series Screw-On.
Specifications
Back of bar to cutting edge in1/2
Complete insert compatibilityVB.. 221
Coolant throughNo
Hand of holderRight Hand
Head length0.8800
Insert compatibilityVB..22.
Insert holding methodScrew
Insert inscribed circle in1/4
Manufacturers catalog numberSVJBR; L062
Multi use toolNo
Overall length in2-1/2
RakeNeutral
Rake angle0
Shank height in3/8
Shank width in3/8
Toolholder materialSteel
Toolholder styleSVJB
