Kennametal

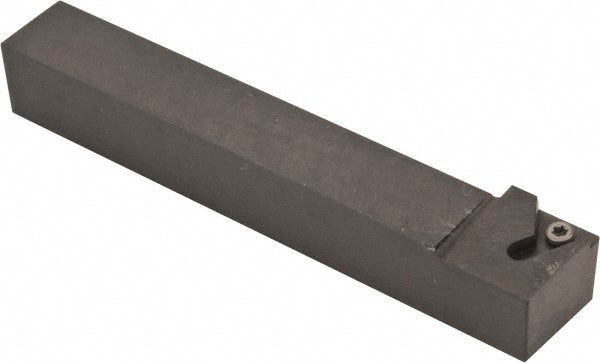

Indexable Turning & Profiling - Kennametal 1095589
MFR# 1095589Cat# STGPR; L082VSeries Screw-On
$99.78List $121.80
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1095589 indexable turning & profiling. Series Screw-On.
Specifications
Back of bar to cutting edge in5/8
Complete insert compatibilityTP.. 2151
Coolant throughNo
Hand of holderRight Hand
Head length0.5600
Insert compatibilityTP..21.5.
Insert holding methodScrew
Insert inscribed circle in1/4
Manufacturers catalog numberSTGPR; L082V
Multi use toolNo
Overall length in3-1/2
RakePositive
Rake angle0
Shank height in1/2
Shank width in1/2
Toolholder materialSteel
Toolholder styleSTGP
