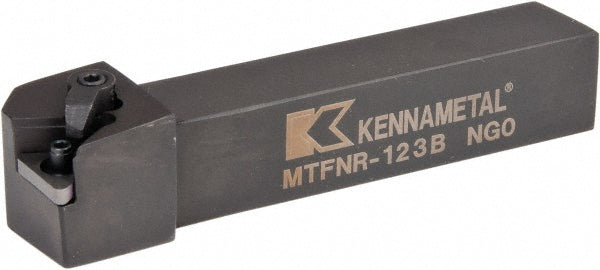

Indexable Turning & Profiling - Kennametal 1096212
MFR# 1096212Cat# MTFNR; L123BSeries Kenloc
$112.90List $137.81
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1096212 indexable turning & profiling. Series Kenloc.
Specifications
Back of bar to cutting edge in1
Complete insert compatibilityTN.. 322
Coolant throughNo
Hand of holderRight Hand
Head length0.9400
Insert compatibilityTN..33.
Insert holding methodClamp; Screw
Insert inscribed circle in3/8
Manufacturers catalog numberMTFNR; L123B
Multi use toolNo
Overall length in4-1/2
RakeNegative
Rake angle-5
Shank height in3/4
Shank width in3/4
Toolholder materialSteel
Toolholder styleMTFN
