Kennametal

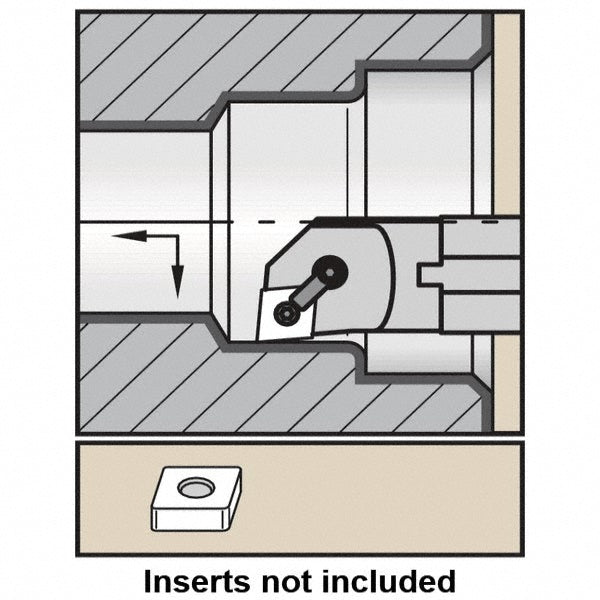

Indexable Boring - Kennametal 1096367
MFR# 1096367Series Kenloc
$645.34List $787.73
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1096367 indexable boring. Series Kenloc.
Specifications
Center to cutting edge1.5310
Coolant hole thread size in1/4-18 NPT
Coolant throughYes
Hand of holderRight Hand
Insert compatibilityCN..
Insert holding methodScrew; Clamp
Insert inscribed circle in1/2
Insert thickness in3/16
Lead angle5
Minimum bore diameter3.0300
Multi use toolNo
RakeNegative
Rake angle5.00
Shank diameter in2-1/2
Toolholder styleA-MCLN
Tool materialSteel
