Kennametal

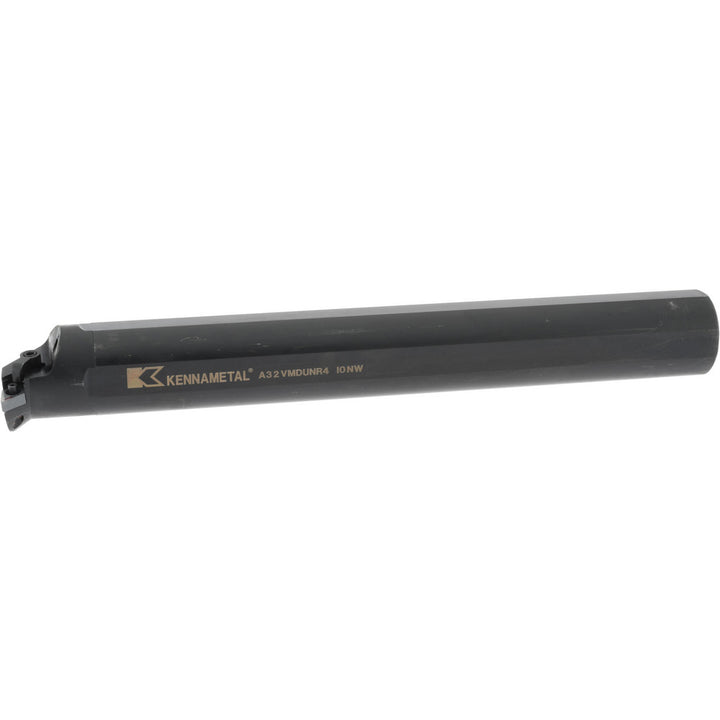

Indexable Boring - Kennametal 1096450
MFR# 1096450Series Kenloc
$611.61List $746.55
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1096450 indexable boring. Series Kenloc.
Specifications
Back of bar to cutting edge (mm)34.93
Center to cutting edge1.3750
Coolant hole thread size in1/4-18 NPT
Coolant throughYes
Hand of holderRight Hand
Insert compatibilityDN..
Insert holding methodScrew; Clamp
Insert inscribed circle in1/2
Insert thickness in3/16
Lead angle-3
Minimum bore diameter2.5000
Multi use toolNo
Overall length16.0000
RakeNegative
Rake angle5.00
Shank diameter in2
Toolholder styleA-MDUN
Tool materialSteel
