Kennametal

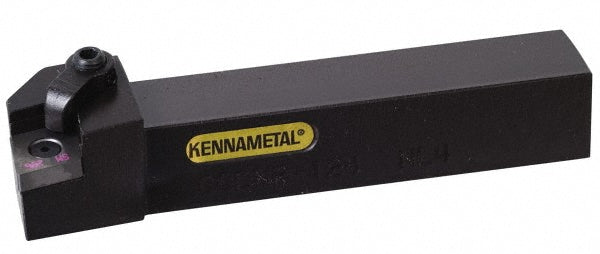

Indexable Turning & Profiling - Kennametal 1096903
MFR# 1096903Cat# CCLPR; L124BSeries Kendex
$112.56List $137.39
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1096903 indexable turning & profiling. Series Kendex.
Specifications
Back of bar to cutting edge in1
Complete insert compatibilityCP.. 422
Coolant throughNo
Hand of holderRight Hand
Head length1.2500
Insert compatibilityCP..42.
Insert holding methodClamp
Insert inscribed circle in1/2
Manufacturers catalog numberCCLPR; L124B
Multi use toolNo
Overall length in4-1/2
RakePositive
Rake angle3.5
Shank height in3/4
Shank width in3/4
Toolholder materialSteel
Toolholder styleCCLP
