Kennametal

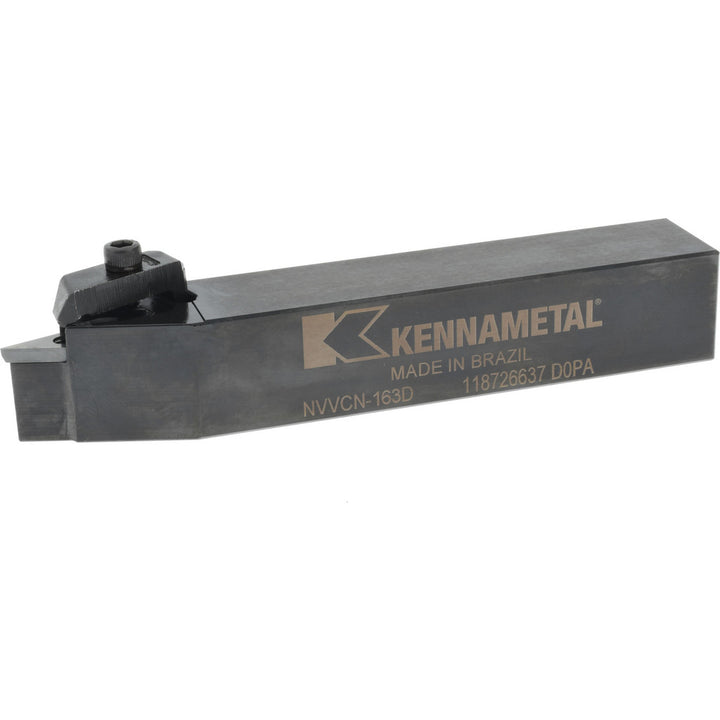

Indexable Turning & Profiling - Kennametal 1097128
MFR# 1097128Series Top Notch
$137.18List $167.45
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1097128 indexable turning & profiling. Series Top Notch.
Specifications
Back of bar to cutting edge0.4970
Compatible insert size codeVP..
Complete insert compatibilityVP.. 332
Coolant throughNo
Hand of holderNeutral
Head length1.6200
Insert holding methodClamp
Insert inscribed circle in3/8
Internal or externalExternal
Lead angle17.5
Overall length in6
RakeNeutral
Rake angle0
Shank height in1
Shank width diameter in1
Toolholder materialSteel
Toolholder styleNVVC
