Kennametal

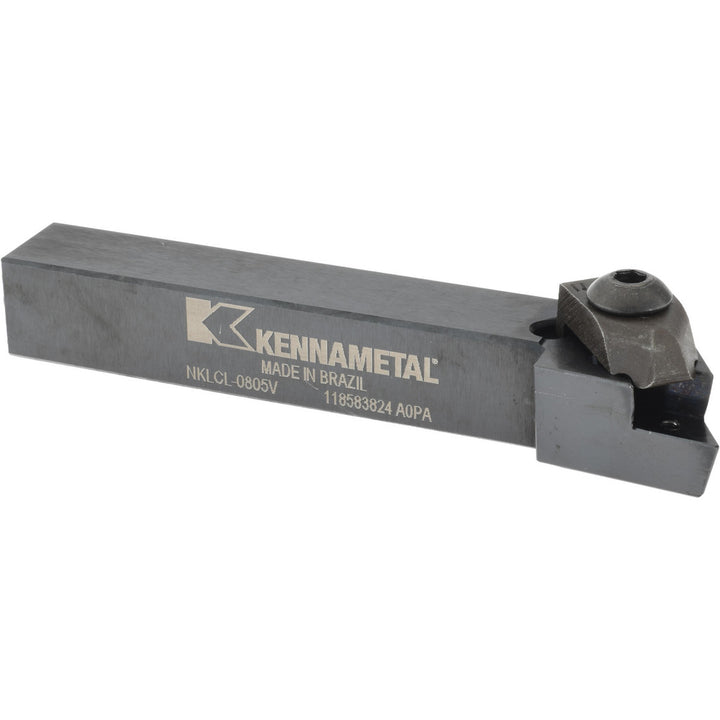

Indexable Turning & Profiling - Kennametal 1097189
MFR# 1097189Series Top Notch
$121.70List $148.55
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1097189 indexable turning & profiling. Series Top Notch.
Specifications
Back of bar to cutting edge0.7500
Compatible insert size codeNP..
Complete insert compatibilityNP.. 51L
Coolant throughNo
Hand of holderLeft Hand
Head length0.8800
Insert holding methodClamp
Insert inscribed circle in5/8
Internal or externalExternal
Lead angle-5
Overall length3.5000
RakeNeutral
Shank height0.5000
Shank width diameter0.5000
Toolholder materialSteel
Toolholder styleNKLC
