Kennametal

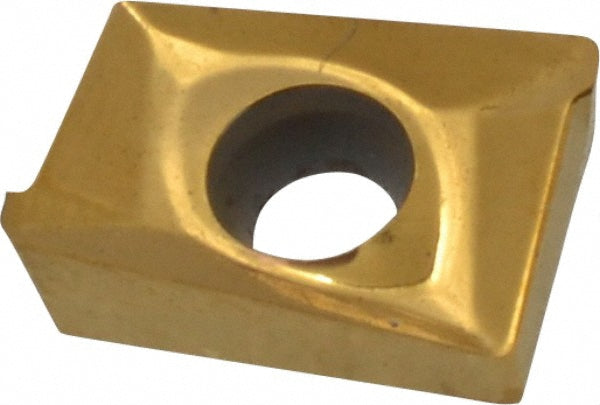

ANGT1003PPFRLGJ Solid Carbide Insert, Grade KC730, TiN - Kennametal 1112577
MFR# 1112577ISO/ANSI# ANGT1003PPFRLGJCat# ANGT1003PPFRLGJSeries ANGT
$38.09List $46.49
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKC730
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 1112577 is a ANGT1003PPFRLGJ solid carbide indexable insert, grade KC730, TiN coated.
Specifications
Chip breakerLG
Coating finishTiN
Coating processPVD
Corner radius0.0197
Hole diameter0.1102
Included angle degree85
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code1623
Insert styleANGT
Iso codeANGT1003PPFRLGJ
Length0.4094
Length range0.4000 to 0.4500
Manufacturers catalog numberANGT1003PPFRLGJ
Manufacturer gradeKC730
Material gradeC2; C3; C4
Rake angle30
Relief angle0.00
Thickness0.1417
Thickness range0.1250 to 0.1500
Width0.2677
