Kennametal

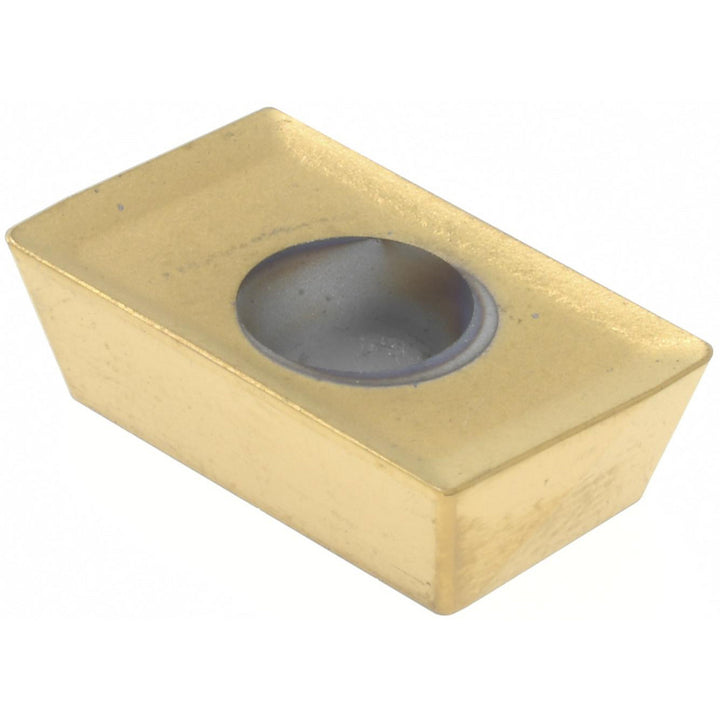

APKT1604PDTR Solid Carbide Insert, Grade KC725M, TiN - Kennametal 1112601
MFR# 1112601ISO/ANSI# APKT1604PDTRCat# APKT1604PDTRSeries APKT
$31.62List $38.59
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKC725M
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 1112601 is a APKT1604PDTR solid carbide indexable insert, grade KC725M, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0394
Hole diameter0.1732
Included angle degree85
Inscribed circle0.4330
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size26
Insert size code263
Insert styleAPKT
Iso codeAPKT1604PDTR
Length in11/16
Length range0.6500 to 0.7000
Manufacturers catalog numberAPKT1604PDTR
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC7
Maximum depth of cut0.4330
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Relief angle11.00
Thickness0.1949
Thickness range0.1850 to 0.2000
Width0.3937
