Kennametal

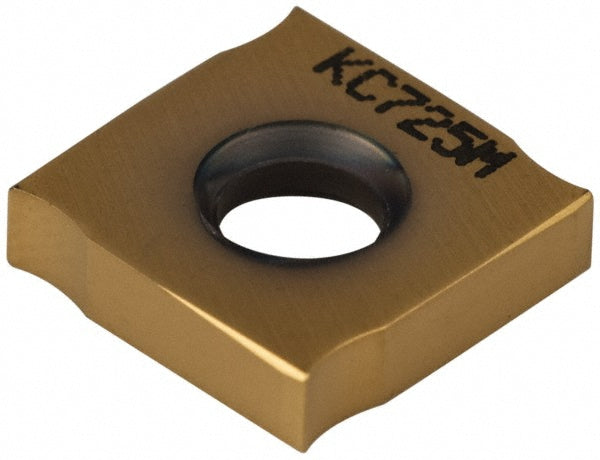

SNHX1103T Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 1112603
MFR# 1112603ISO/ANSI# SNHX1103TCat# SNHX1103TSeries SNHX
$33.02List $40.31
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 1112603 is a SNHX1103T solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeSNHX1103T
Chip breakerCommon
Coating finishTiAlN
Coating processPVD
Cutter series compatibilitySN
Cutting edge styleT-Land
Hole diameter0.1732
Included angle degree90
Inscribed circle0.4330
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size11
Insert size code1103
Insert styleSNHX
Iso codeSNHX1103T
Length0.4330
Length range0.4000 to 0.4500
Manufacturers catalog numberSNHX1103T
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1060
Thickness range0.1000 to 0.1250
Width0.4331
