Kennametal

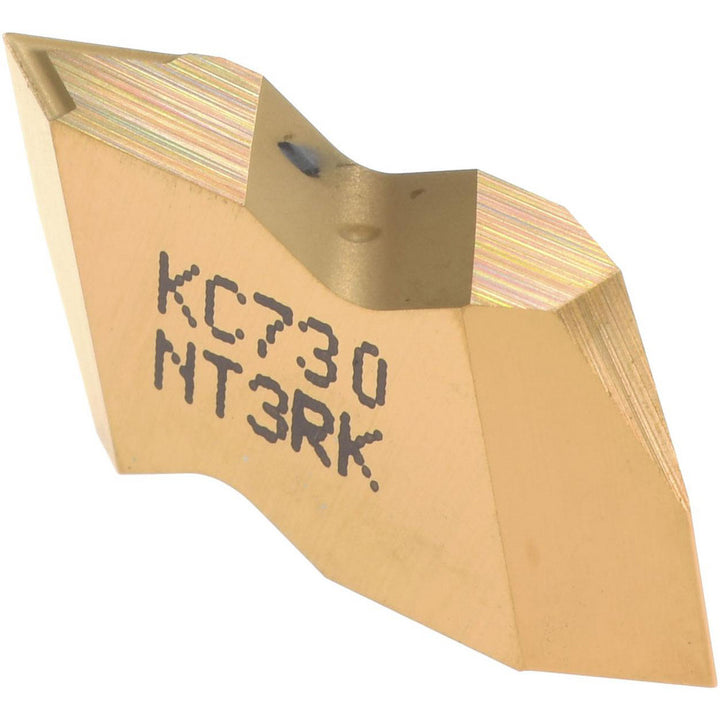

Carbide Insert, Grade KC730, TiN - Kennametal 1112895
MFR# 1112895Series Top Notch
$32.98List $40.26
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC730
MaterialCarbide
CoatingTiN
Description
The Kennametal 1112895 is a carbide indexable insert, grade KC730, TiN coated.
Specifications
ChipbreakerK
Coating finishTiN
Coating processPVD
Corner radius0.0067
External pitch1.25-4.00 mm; 6-20 TPI
Finish coatingTitanium Nitride
Included angle60
Insert handRight Hand
Insert materialCarbide
Insert size3
Insert styleNT
Internal pitch2.00 to 5.00 mm; 5 to 12 TPI
Manufacturer gradeKC730
Material gradeC2; C3; C4
Thickness0.1949
Thread standardPartial Profile 60 Degree
Thread typeInternal; External
Tip to top of insert0.0980
