Kennametal

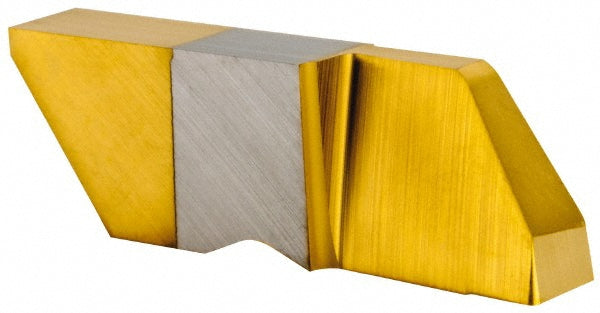

Carbide Insert, Grade KC730, TiN - Kennametal 1112903
MFR# 1112903Series Top Notch
$35.65List $43.52
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC730
MaterialCarbide
CoatingTiN
Description
The Kennametal 1112903 is a carbide indexable insert, grade KC730, TiN coated.
Specifications
Chip breakerK
Coating finishTiN
Coating processPVD
Corner radius0.0224
Cutting width0.2500
Full radiusNo
Included angle degree55
Insert handLeft Hand
Insert materialCarbide
Insert seat size4
Insert size4250
Insert styleNFD
Lead angle3
Manufacturer gradeKC730
Material gradeC2; C3; C4
Maximum depth of cut0.5000
Maximum depth of cut range0.3000 to 1.0000
Measurement typeMetric
Multi use toolNo
RakePositive
Rake angle10
