Kennametal
Carbide Insert, Grade KC730, TiN - Kennametal 1112957
MFR# 1112957Series Top Notch
$29.63List $36.16
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC730
MaterialCarbide
CoatingTiN
Description

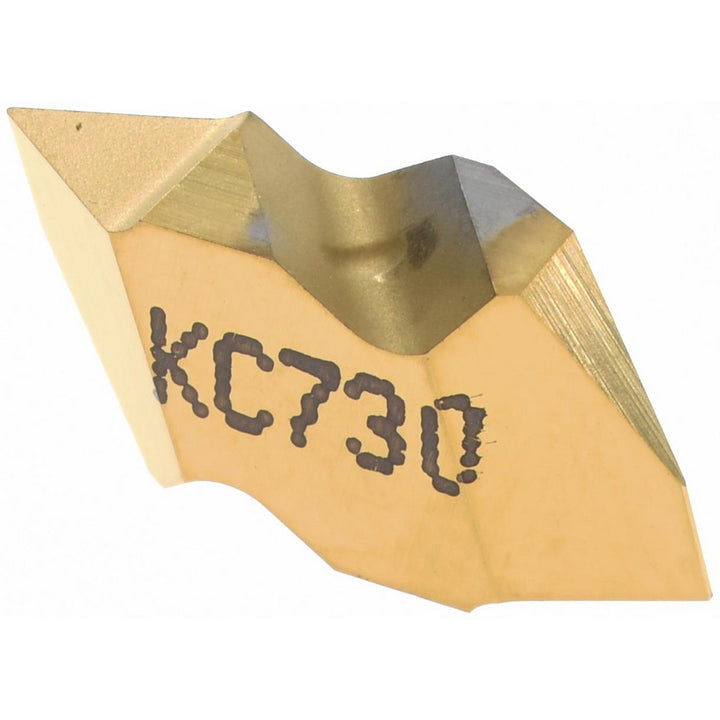

The Kennametal 1112957 is a carbide indexable insert, grade KC730, TiN coated.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0040
External pitch0.70-3.00 mm; 8-36 TPI
Finish coatingTitanium Nitride
Included angle60
Insert handRight Hand
Insert materialCarbide
Insert size2
Insert styleNTP
Internal pitch1.25 to 3.50 mm; 7 to 20 TPI
Manufacturer gradeKC730
Material gradeC2; C3; C4
Thickness0.15
Thread standardPartial Profile 60 Degree
Thread typeInternal; External
Tip to top of insert0.0752
