Kennametal

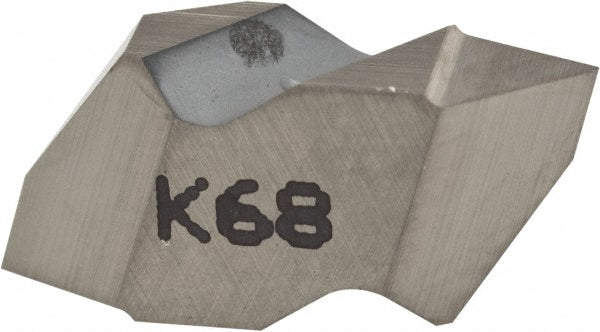

Carbide Insert, Grade K68 - Kennametal 1113510
MFR# 1113510Series Top Notch
$27.56List $33.64
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeK68
MaterialCarbide
Description
The Kennametal 1113510 is a carbide indexable insert, grade K68.
Specifications
Corner radius0.0040
External pitch0.70-3.00 mm; 8-36 TPI
Finish coatingBright/Uncoated
Included angle60
Insert handLeft Hand
Insert materialCarbide
Insert size2
Insert styleNTP
Internal pitch1.25 to 3.50 mm; 7 to 20 TPI
Manufacturer gradeK68
Material gradeC3
Thickness0.15
Thread standardPartial Profile 60 Degree
Thread typeInternal; External
Tip to top of insert0.0752
