Kennametal
Carbide Insert, Grade KC850 - Kennametal 1113759
MFR# 1113759Series Top Notch
$35.17List $42.92
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC850
MaterialCarbide
Description

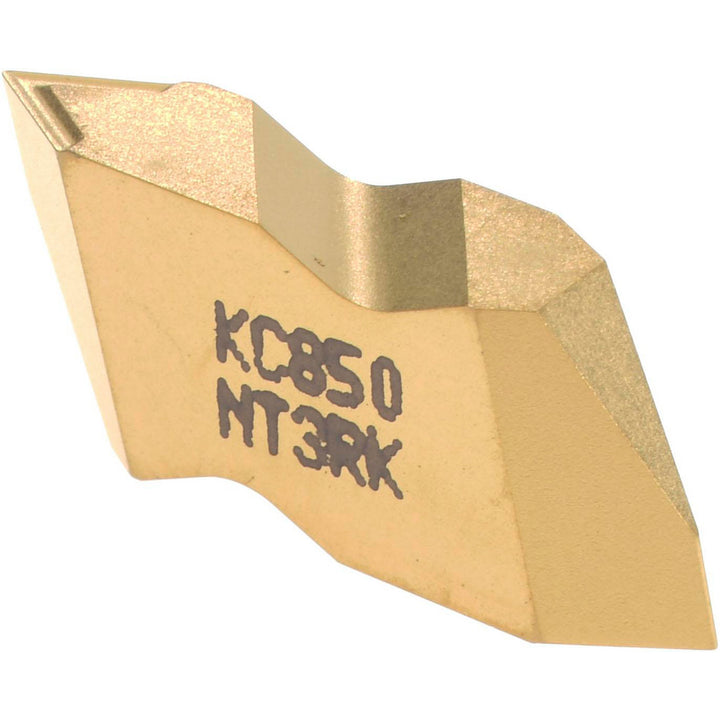

The Kennametal 1113759 is a carbide indexable insert, grade KC850.
Specifications
ChipbreakerK
Coating processCVD
Corner radius0.0067
External pitch1.25-4.00 mm; 6-20 TPI
Finish coatingTiC/TiCN/TiN
Included angle60
Insert handRight Hand
Insert materialCarbide
Insert size3
Insert styleNT
Internal pitch2.00 to 5.00 mm; 5 to 12 TPI
Manufacturer gradeKC850
Material gradeC5; C6
Thickness0.1949
Thread standardPartial Profile 60 Degree
Thread typeInternal; External
Tip to top of insert0.0980
