Kennametal

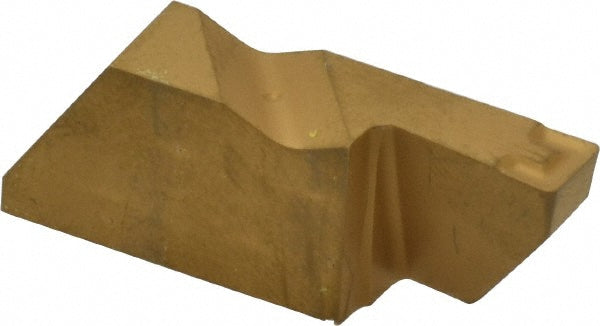

Carbide Insert, Grade KC850, TiC - Kennametal 1113764
MFR# 1113764Series Top Notch
$41.26List $46.57
Save 11%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC850
MaterialCarbide
CoatingTiC
Description
The Kennametal 1113764 is a carbide indexable insert, grade KC850, TiC coated.
Specifications
Chip breakerK
Coating finishTiC
Coating processCVD
Corner radius0.0224
Cutting width0.1890
Full radiusNo
Included angle degree55
Insert handRight Hand
Insert height0.4530
Insert materialCarbide
Insert seat size4
Insert size4189
Insert styleNFD
Lead angle3
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.3752
Maximum depth of cut range0.3000 to 1.0000
Measurement typeMetric
Msc manufacturer numberNFD4189R/LK
Multi use toolNo
RakePositive
Rake angle10
