Kennametal
Carbide Insert, Grade KC850, TiC - Kennametal 1113766
MFR# 1113766Series Top Notch
$42.47List $46.57
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC850
MaterialCarbide
CoatingTiC
Description

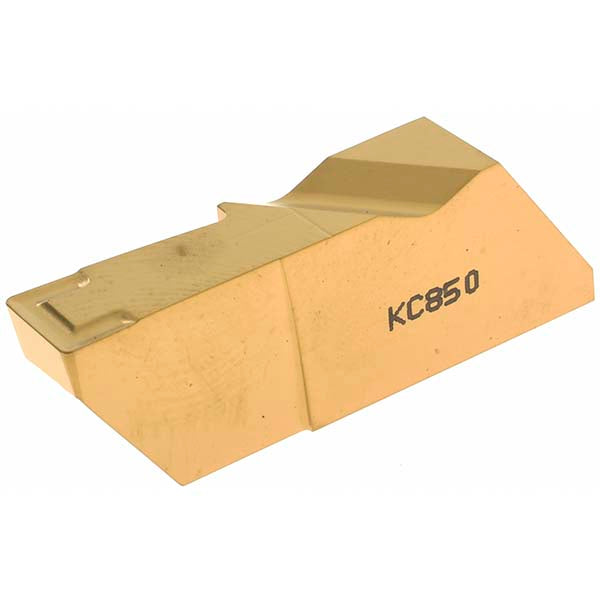

The Kennametal 1113766 is a carbide indexable insert, grade KC850, TiC coated.
Specifications
Chip breakerK
Coating finishTiC
Coating processCVD
Corner radius0.0224
Cutting width0.2500
Full radiusNo
Included angle degree55
Insert handRight Hand
Insert height0.4530
Insert materialCarbide
Insert seat size4
Insert size4250
Insert styleNFD
Lead angle3
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.5000
Maximum depth of cut range0.3000 to 1.0000
Measurement typeMetric
Msc manufacturer numberNFD4250R/LK
Multi use toolNo
RakePositive
Rake angle10
