Kennametal

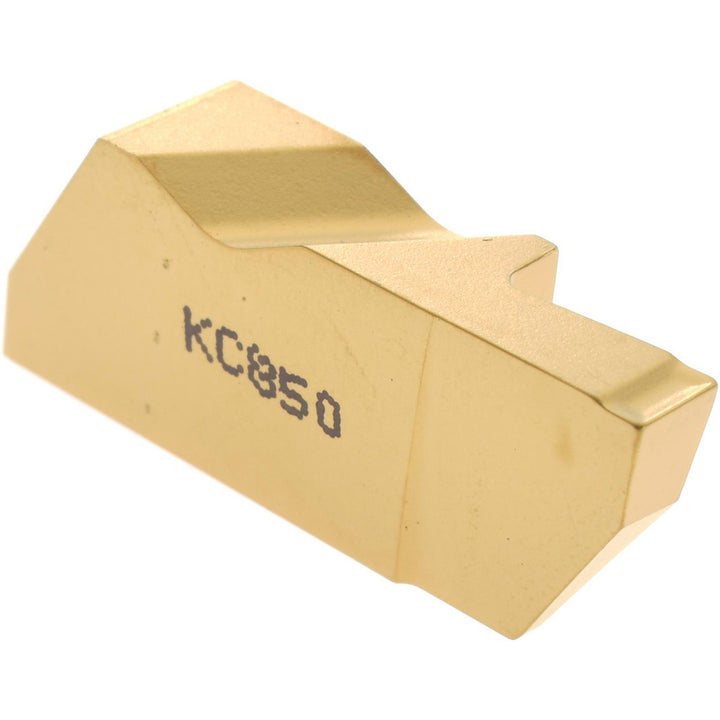

Carbide Insert, Grade KC850, TiC - Kennametal 1113770
MFR# 1113770Series Top Notch
$29.15List $35.44
Save 17%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC850
MaterialCarbide
CoatingTiC
Description
The Kennametal 1113770 is a carbide indexable insert, grade KC850, TiC coated.
Specifications
Chip breakerK
Coating finishTiC
Coating processCVD
Corner radius0.0075
Cutting width0.1252
Full radiusNo
Included angle degree55
Insert handLeft Hand
Insert materialCarbide
Insert size3125
Insert styleNFD
Lead angle3
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.2500
Maximum depth of cut range0.2000 to 0.3000
Measurement typeMetric
Multi use toolNo
RakePositive
Rake angle10
