Kennametal
Carbide Insert, Grade KC850, TiC - Kennametal 1113898
MFR# 1113898Series Top Notch
$40.01List $48.84
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC850
MaterialCarbide
CoatingTiC
Description

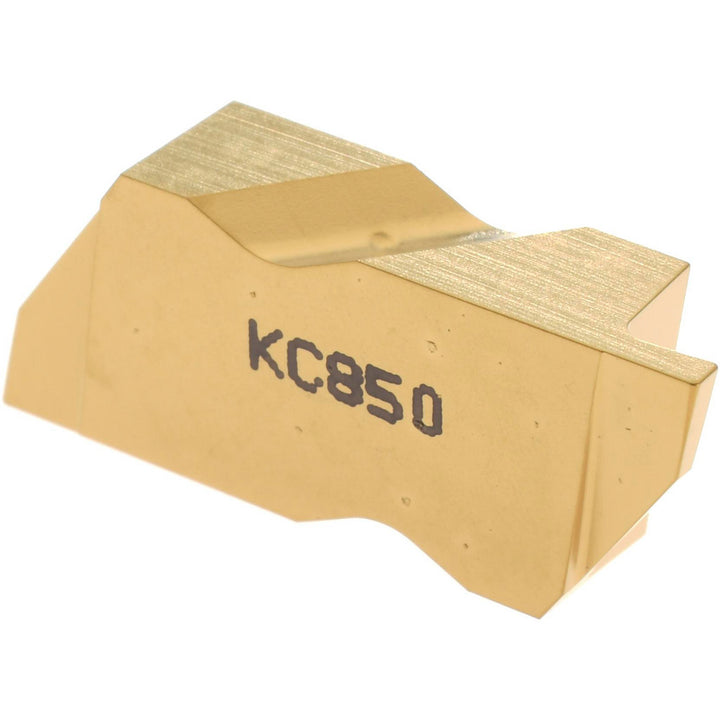

The Kennametal 1113898 is a carbide indexable insert, grade KC850, TiC coated.
Specifications
Coating finishTiC
Coating processCVD
Corner radius0.0075
Cutting width0.0469
Full radiusNo
Included angle degree55
Insert handLeft Hand
Insert materialCarbide
Insert size3047
Insert styleNG
Lead angle3
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.0752
Maximum depth of cut range0.0750 to 0.1000
Measurement typeMetric
Multi use toolNo
RakeNeutral
