Kennametal
Carbide Insert, Grade KC730, TiN - Kennametal 1114217
MFR# 1114217Series Top Notch
$38.98List $47.58
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC730
MaterialCarbide
CoatingTiN
Description

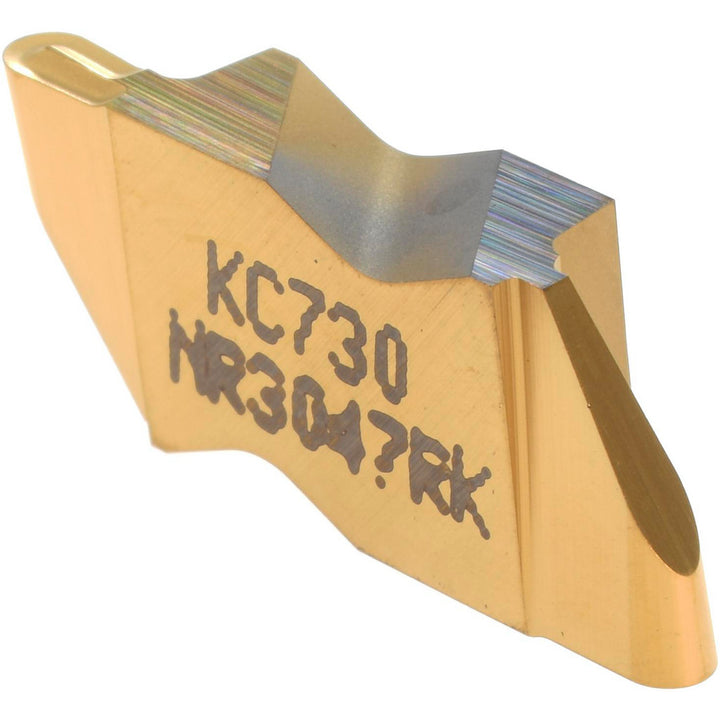

The Kennametal 1114217 is a carbide indexable insert, grade KC730, TiN coated.
Specifications
Chip breakerK
Coating finishTiN
Coating processPVD
Corner radius0.0469
Cutting width0.0941
Full radiusYes
Included angle degree55
Insert handRight Hand
Insert height0.3440
Insert materialCarbide
Insert size3047
Insert styleNR
Manufacturer gradeKC730
Material gradeC2; C3; C4
Maximum depth of cut0.1500
Maximum depth of cut range0.1500 to 0.2000
Measurement typeMetric
Msc manufacturer numberNR3047R/LK
Multi use toolNo
RakePositive
Rake angle10
