Kennametal

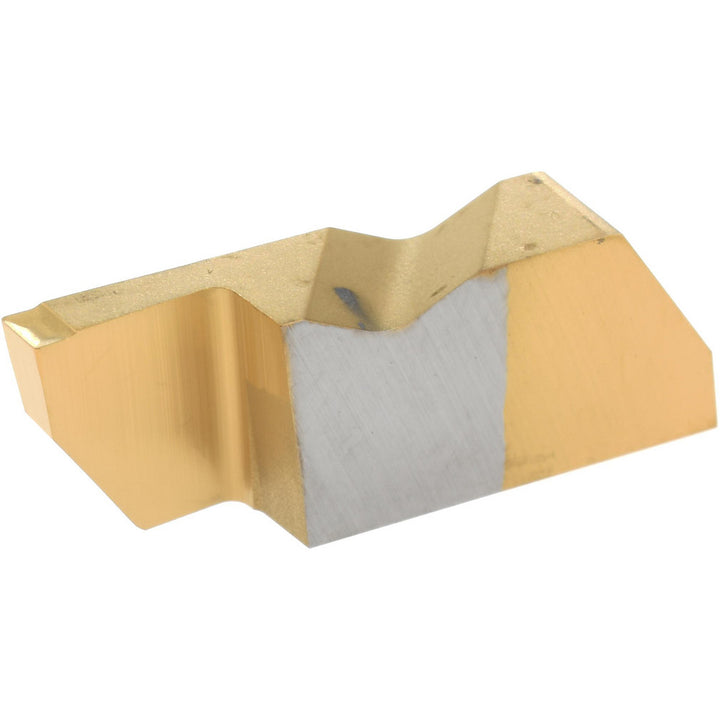

Carbide Insert, Grade KC730, TiN - Kennametal 1114342
MFR# 1114342Series Top Notch
$27.39List $33.44
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC730
MaterialCarbide
CoatingTiN
Description
The Kennametal 1114342 is a carbide indexable insert, grade KC730, TiN coated.
Specifications
Chip breakerK
Coating finishTiN
Coating processPVD
Corner radius0.0075
Cutting width0.0941
Full radiusNo
Included angle degree55
Insert handLeft Hand
Insert materialCarbide
Insert size3094
Insert styleNGD
Lead angle3
Manufacturer gradeKC730
Material gradeC2; C3; C4
Maximum depth of cut0.2500
Maximum depth of cut range0.2000 to 0.3000
Measurement typeMetric
Multi use toolNo
RakePositive
Rake angle10
