Kennametal

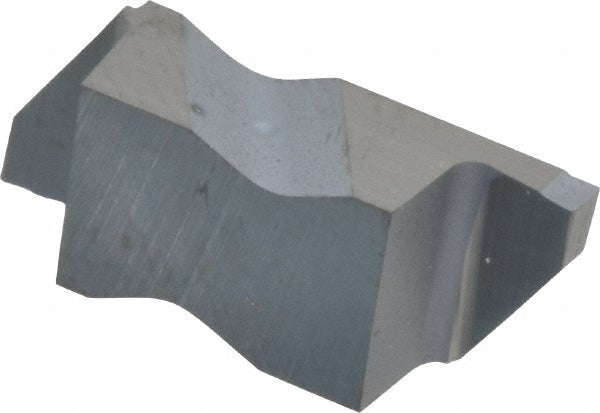

Carbide Insert, Grade K313 - Kennametal 1114484
MFR# 1114484Series Top Notch
$25.79List $31.48
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeK313
MaterialCarbide
Description
The Kennametal 1114484 is a carbide indexable insert, grade K313.
Specifications
Chip breakerK
Corner radius0.0075
Cutting width0.0622
Full radiusNo
Included angle degree55
Insert handRight Hand
Insert materialCarbide
Insert size3062
Insert styleNGD
Lead angle3
Manufacturer gradeK313
Material gradeC3; C4
Maximum depth of cut0.1252
Maximum depth of cut range0.1000 to 0.1500
Measurement typeMetric
Multi use toolNo
RakePositive
Rake angle10
