Kennametal

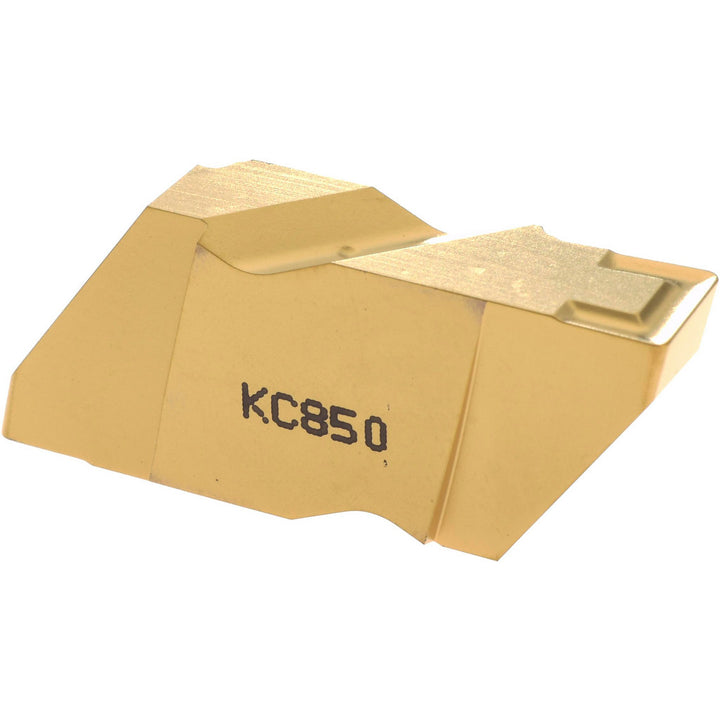

Carbide Insert, Grade KC850, TiC - Kennametal 1114854
MFR# 1114854Series Top Notch
$53.52List $65.33
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC850
MaterialCarbide
CoatingTiC
Description
The Kennametal 1114854 is a carbide indexable insert, grade KC850, TiC coated.
Specifications
Chip breakerK
Coating finishTiC
Coating processCVD
Corner radius0.0225
Cutting width0.2500
Full radiusNo
Included angle degree55
Insert handLeft Hand
Insert materialCarbide
Insert seat size4
Insert size4250
Insert styleNG
Lead angle3
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.2500
Maximum depth of cut range0.2000 to 0.3000
Measurement typeMetric
Multi use toolNo
RakePositive
Rake angle10
