Kennametal

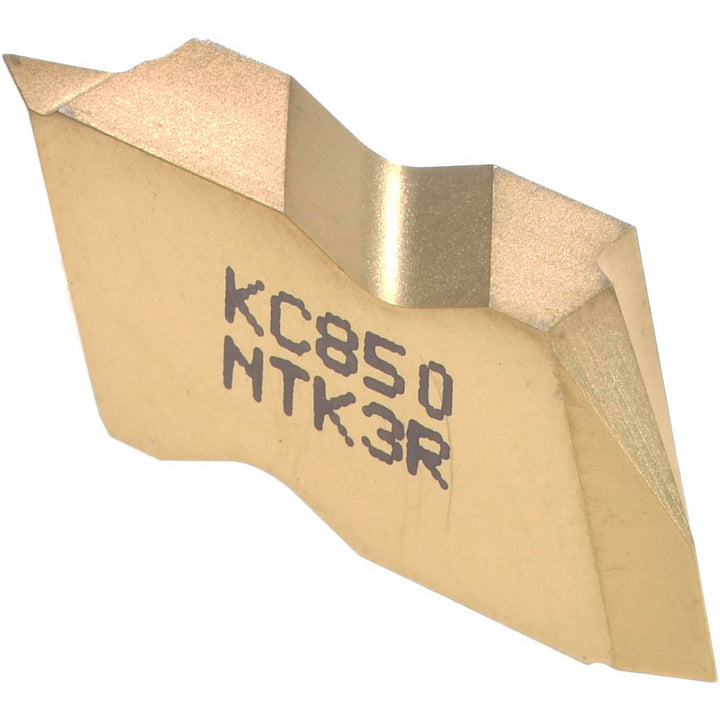

Carbide Insert, Grade KC850 - Kennametal 1114858
MFR# 1114858Series Top Notch
$35.73List $43.62
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC850
MaterialCarbide
Description
The Kennametal 1114858 is a carbide indexable insert, grade KC850.
Specifications
Coating processCVD
Corner radius0.0031
External pitch0.60-2.50 mm; 10-44 TPI
Finish coatingTiC/TiCN/TiN
Included angle60
Insert handRight Hand
Insert materialCarbide
Insert size3
Insert styleNTK
Internal pitch1.00 to 2.50 mm; 9 to 24 TPI
Manufacturer gradeKC850
Material gradeC5; C6
Thickness0.1949
Thread standardPartial Profile 60 Degree
Thread typeInternal; External
Tip to top of insert0.1409
