Kennametal
Carbide Insert, Grade KC850, TiC - Kennametal 1114886
MFR# 1114886Series Top Notch
$36.93List $45.08
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC850
MaterialCarbide
CoatingTiC
Description

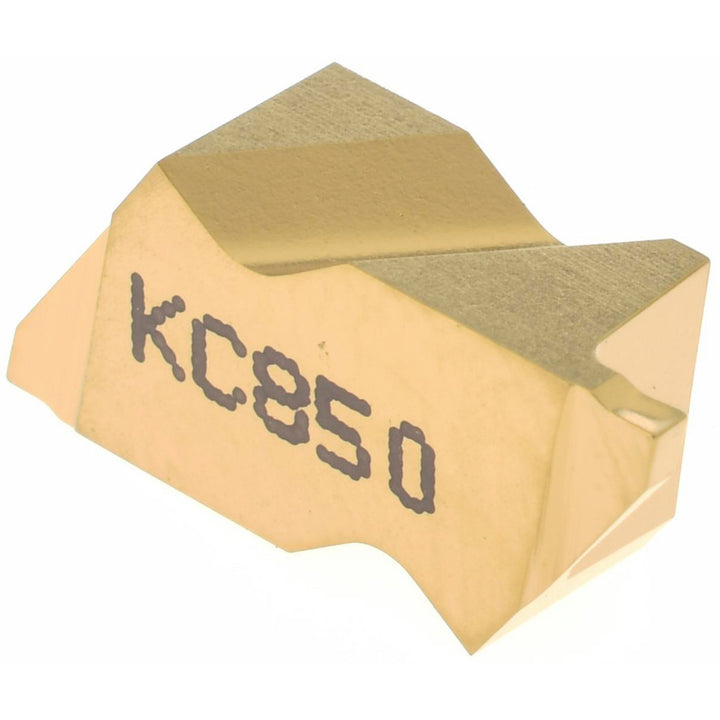

The Kennametal 1114886 is a carbide indexable insert, grade KC850, TiC coated.
Specifications
Chip breakerK
Coating finishTiC
Coating processCVD
Corner radius0.0035
Cutting width0.0311
Full radiusNo
Included angle degree55
Insert handLeft Hand
Insert materialCarbide
Insert size2031
Insert styleNG
Lead angle3
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.0500
Maximum depth of cut range0.0000 to 0.0750
Measurement typeMetric
Multi use toolNo
RakePositive
Rake angle10
