Kennametal
Carbide Insert, Grade KC850, TiC - Kennametal 1114923
MFR# 1114923Series Top Notch
$32.92List $40.18
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC850
MaterialCarbide
CoatingTiC
Description

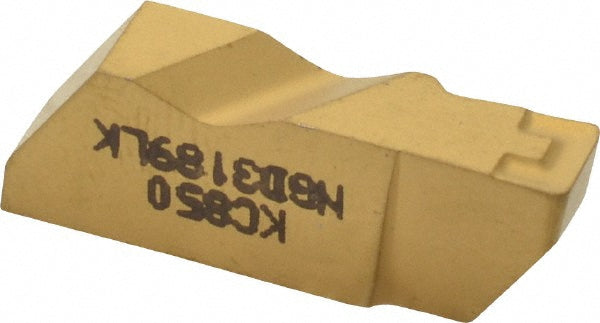

The Kennametal 1114923 is a carbide indexable insert, grade KC850, TiC coated.
Specifications
Chip breakerK
Coating finishTiC
Coating processCVD
Corner radius0.0225
Cutting width0.1890
Full radiusNo
Included angle degree55
Insert handLeft Hand
Insert materialCarbide
Insert size3189
Insert styleNGD
Lead angle3
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.2500
Maximum depth of cut range0.2000 to 0.3000
Measurement typeMetric
Multi use toolNo
RakePositive
Rake angle10
