Kennametal

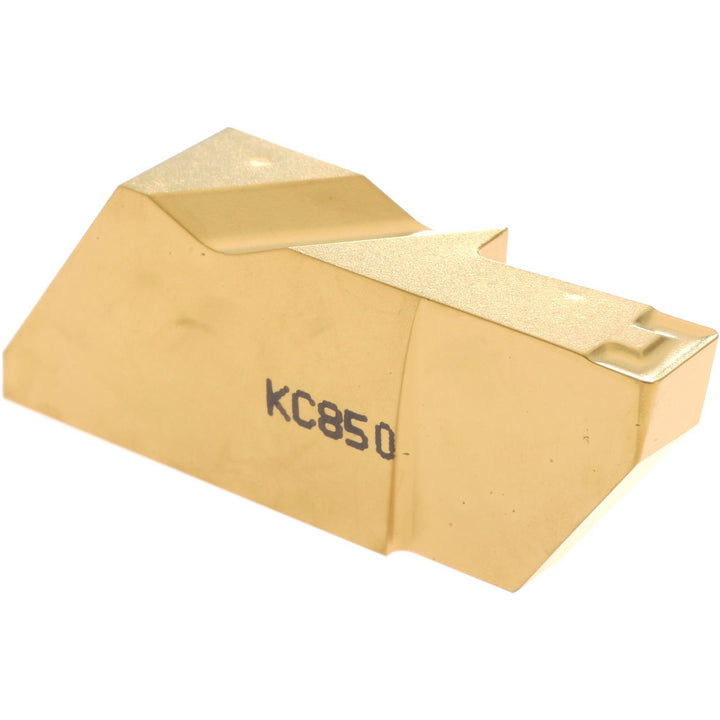

Carbide Insert, Grade KC850, TiC - Kennametal 1114968
MFR# 1114968Series Top Notch
$40.89List $48.77
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC850
MaterialCarbide
CoatingTiC
Description
The Kennametal 1114968 is a carbide indexable insert, grade KC850, TiC coated.
Specifications
Chip breakerK
Coating finishTiC
Coating processCVD
Corner radius0.0225
Cutting width0.1890
Full radiusNo
Included angle degree55
Insert handLeft Hand
Insert materialCarbide
Insert seat size4
Insert size4189
Insert styleNGD
Lead angle3
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.3752
Maximum depth of cut range0.3000 to 1.0000
Measurement typeMetric
Multi use toolNo
RakePositive
Rake angle10
