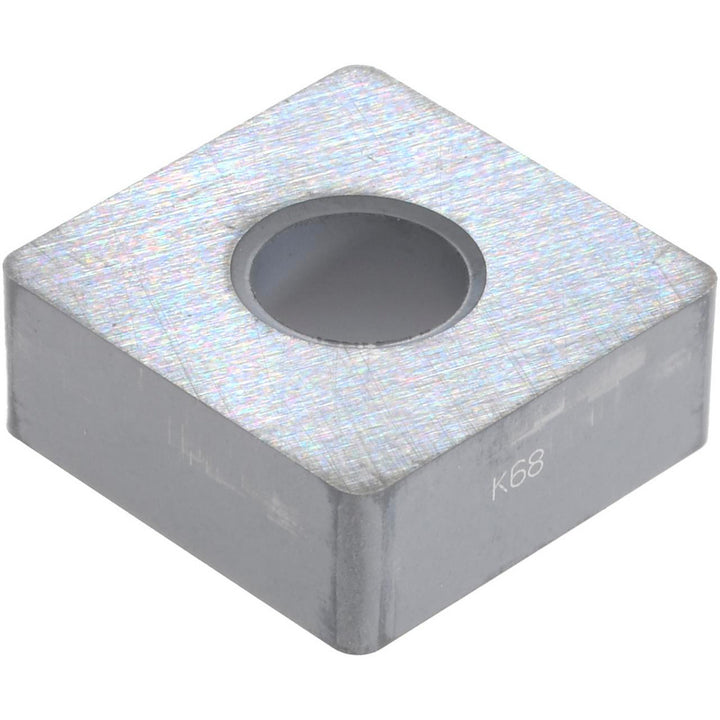

SNMA432 Carbide Insert, Grade K68 - Kennametal 1134285

Kennametal

SNMA432 Carbide Insert, Grade K68 - Kennametal 1134285

MFR# 1134285ISO/ANSI# SNMA120408Series KENLOC

$19.93List $24.33 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeS - Square
GradeK68
MaterialCarbide

Description

The Kennametal 1134285 is a SNMA432 carbide indexable insert, grade K68. Suited for non-ferrous metal, superalloys & titanium.

Specifications

Ansi insert codeSNMA432
Ansi size code432
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating processUncoated
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughne
Hole diameter0.2031
Included angle90
Industry standard numberSNMA432
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert shapeS - Square
Insert size code432
Insert styleSNMA
Insert thickness in3/16
Iso codeSNMA432
Iso insert codeSNMA120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturers catalog number1134285
Manufacturer gradeK68
Material gradeC3
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialNon-Ferrous Metal; Superalloys & Titanium
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
