Kennametal

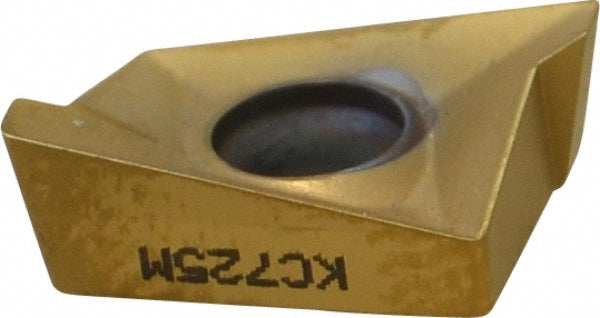

ANGT1606PPERLG Solid Carbide Insert, Grade KC725M, TiN - Kennametal 1156141
MFR# 1156141ISO/ANSI# ANGT1606PPERLGCat# ANGT1606PPERLGSeries ANGT
$46.57List $56.84
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKC725M
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 1156141 is a ANGT1606PPERLG solid carbide indexable insert, grade KC725M, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Chip breakerLG
Coating finishTiN
Coating processPVD
Corner radius in1/64
Hole diameter0.1732
Included angle degree85
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size25
Insert size code254
Insert styleANGT
Iso codeANGT1606PPERLG
Length0.6300
Length range0.6000 to 0.6500
Manufacturers catalog numberANGT1606PPERLG
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Rake angle30
Relief angle0
Thickness in1/4
Thickness range0.2500 to 0.3500
Width0.4330
